FIND YOUR CONNECTION

Find your EV
charging solution.

Every site is different. We help you choose a charger around your vehicle, available power and the way you use it.

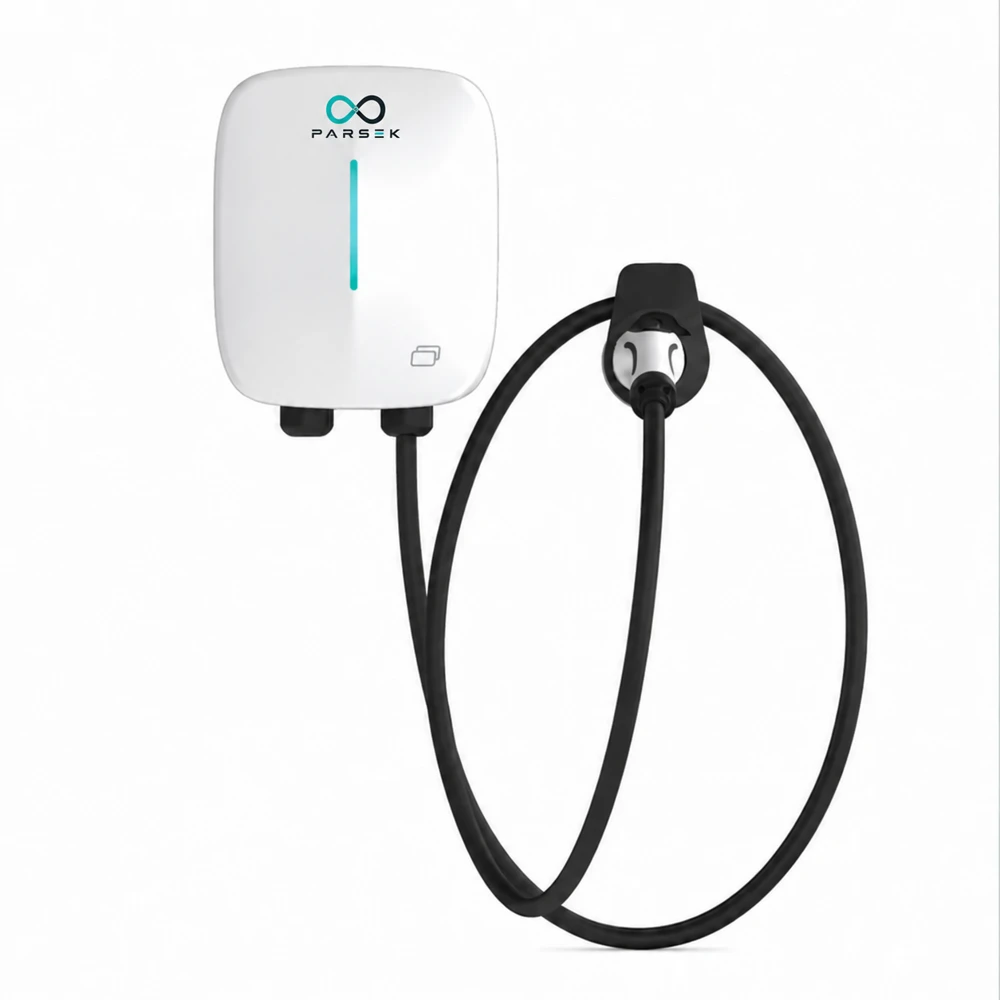

Available PARSEK JUPITER-AC7 7 kW AC wallbox with Type-2 charging cable

AC / HOME & DESTINATION

PARSEK JUPITER-AC7

7 kW

A compact AC wallbox for homes, offices and apartment parking, with app-adjustable current to suit the available supply.

  • Type-2 · 5 m tethered cable
  • 230 V single-phase · 16–32 A
  • IP65 · Bluetooth · App / RFID

2-year equipment warranty · CE-RED & CB certified

View technical specifications
PARSEK JUPITER-AC7 specifications
Rated power7 kW
ConnectorType-2, 5 m tethered cable
Supply230 Vac ±15%, single-phase
Output current16–32 A, adjustable through the app
Efficiency≥99%
Ground fault detectionAC 30 mA + DC 6 mA
ProtectionOvercurrent, undervoltage, no-voltage, short circuit, over-temperature, leakage, lightning and integrated surge protection
Ingress protectionIP65
EnclosureFlame-retardant UL94 V-0 PC/ASA
Operating temperature−30°C to +50°C
Storage temperature−40°C to +70°C
Noise<40 dB during charging
ConnectivityBluetooth
AuthenticationApp / RFID / AutoStart
App functionsStart/stop, current setting, charging schedules and session history
Status indicationAmbient LED light bar
Dimensions (W × D × H)310 × 224 × 128 mm
Weight4.2 kg including cable and connector
MountingWall-mounted; optional pedestal
Design standardIEC 61851-1
EMC complianceEN IEC 61851-21-2, EN IEC 61000-3-11, EN 61000-3-12
CertificationCE-RED, CB
Equipment warranty2 years

Requires a dedicated 40 A single-phase circuit with upstream MCB. Cable runs beyond the standard 10 m allowance are quoted separately. Specifications are subject to change.

Request datasheet on WhatsApp ↗
Request a quote ↗

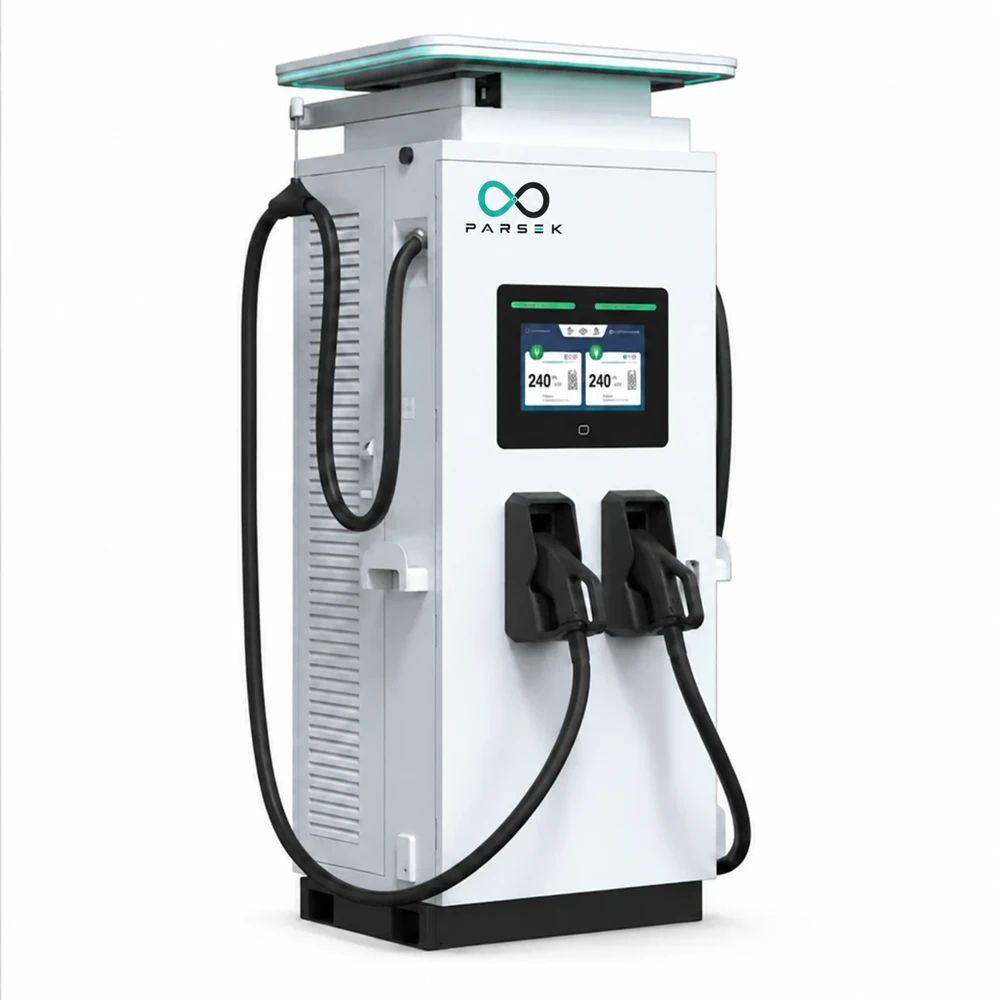

Available PARSEK JUPITER-DC120 120 kW DC charger with dual CCS2 connectors

DC / COMMERCIAL & FLEET

PARSEK JUPITER-DC120

120 kW

Charge two vehicles simultaneously, with 120 kW shared dynamically between the two CCS2 connectors.

  • Dual CCS2 · 5 m cables
  • 200–1000 V DC · up to 300 A
  • IP54 · OCPP 1.6 / 2.0.1

2-year equipment warranty · CE-RED & CB certified

View technical specifications
PARSEK JUPITER-DC120 specifications
Rated power120 kW total, dynamically shared when charging two vehicles
Connectors2 × CCS2, 5 m cable
Supply400 Vac ±10%, 50/60 Hz; 3P + N + PE
DC output voltage200–1000 V
Output current0–300 A
Efficiency≥96%
Power factor (>50% load)≥0.99
THDi (>50% load)≤5%
Standby power<50 W
Overvoltage categoryOVC III
ProtectionOvervoltage, undervoltage, short circuit, over-temperature, leakage, surge, ground fault and connector temperature protection
Ingress protectionIP54
Operating temperature−30°C to +50°C at full power; +50°C to +75°C at limited power
Storage temperature−40°C to +70°C
Humidity5–95% RH, non-condensing
Operating altitude≤2000 m
Noise<65 dB
Display7-inch or 15.6-inch LCD high-contrast touchscreen
Connectivity4G, Wi-Fi, Ethernet
ProtocolsOCPP 1.6 / OCPP 2.0.1
AuthenticationApp / RFID / AutoStart
Remote managementLive status, session and billing records, tariff configuration, fault alerts and OTA firmware upgrades
Dimensions (W × D × H)770 × 550 × 1800 mm; 770 × 550 × 2025 mm with cable management
Weight260 kg including cables and connectors; 295 kg with cable management
MountingPedestal-mounted
Design standardsIEC 61851-1, IEC 61851-23
EMC complianceEN IEC 61000-6-2, EN IEC 61000-6-4, EN IEC 61851-21-2
CertificationCE-RED, CB
Equipment warranty2 years

Requires a dedicated three-phase supply with appropriate upstream protection. PARSEK carries out the site survey, electrical works and commissioning. Specifications are subject to change.

Request datasheet on WhatsApp ↗
Request a quote ↗
PLANNING SOMETHING BIGGER?

Built around your next step.

30 kW / 60 kW

Available on demand. 60 kW stock coming soon.

Bus & fleet charging

High-power systems available on demand.

Discuss your project ↗

A COMPLETE CHARGING SOLUTION

EV charger installation.
From plan to plug-in.

From choosing the equipment to getting it installed, PARSEK gives you one point of contact for your charging project.

01 / RESIDENTIAL

Arrive home.
Plug into tomorrow.

Dedicated EV charging for homes and residential parking. Charger supply nationwide, with installation focused on Islamabad, Rawalpindi and Lahore.

Plan home charging ↗
02 / COMMERCIAL

A better destination
starts here.

Charging for offices, retail destinations, hotels and commercial sites. We assess the site and propose a practical supply and installation package.

Plan a charging site ↗
03 / FLEET

Keep your business
in motion.

Project-led charging for electric buses and fleets. Discuss your vehicle mix, depot capacity and operating schedule with our team.

Discuss fleet charging ↗

FROM FIRST CONVERSATION TO FIRST CHARGE

A clear route forward.

  1. 01

    Tell us your plans

    Share your vehicle, location and whether you need supply only or installation too.

  2. 02

    Free site survey

    We review your site, electrical supply and charger location before recommending a solution.

  3. 03

    One clear proposal

    Receive a combined supply and installation quote, or a supply-only quote if preferred.

  4. 04

    Install. Charge. Go.

    Our team coordinates installation and handover, with after-sales support for your next steps.

For available stock, allow approximately four weeks. The final project timeline is agreed after the site survey.

CONNECTED ACROSS PAKISTAN

BASED IN ISLAMABAD. LOOKING AHEAD.

Local expertise.
Wider horizons.

Commercial charging services across Pakistan, with an initial focus on Islamabad, Rawalpindi, Lahore and major cities of Punjab. We also cover Peshawar and other locations by project.

Islamabad / Rawalpindi Lahore Punjab Peshawar

Residential charger supply nationwide. Residential installation mainly in Islamabad, Rawalpindi and Lahore.

Check your location ↗

THE PARSEK PERSPECTIVE

Every connection.
A new possibility.

Inspired by the distance ahead.
Built for the journeys we share.

THE NEXT CHAPTER IN CHARGING

Inspired by distance.
Driven by connection.

Named after the parsec, a measure of distance across space, PARSEK looks towards a future where electric mobility feels natural, accessible and ready for everyday life.

From choosing the right charger to installation and ongoing support, PARSEK brings every stage of your charging journey together. We help homes, businesses and fleets across Pakistan take the next step towards electric mobility with a clear plan and a team they can reach.

OUR INSTALLATIONS

Installed with care.
Ready for the road.

Explore our EV charger installations in Islamabad and Rawalpindi.

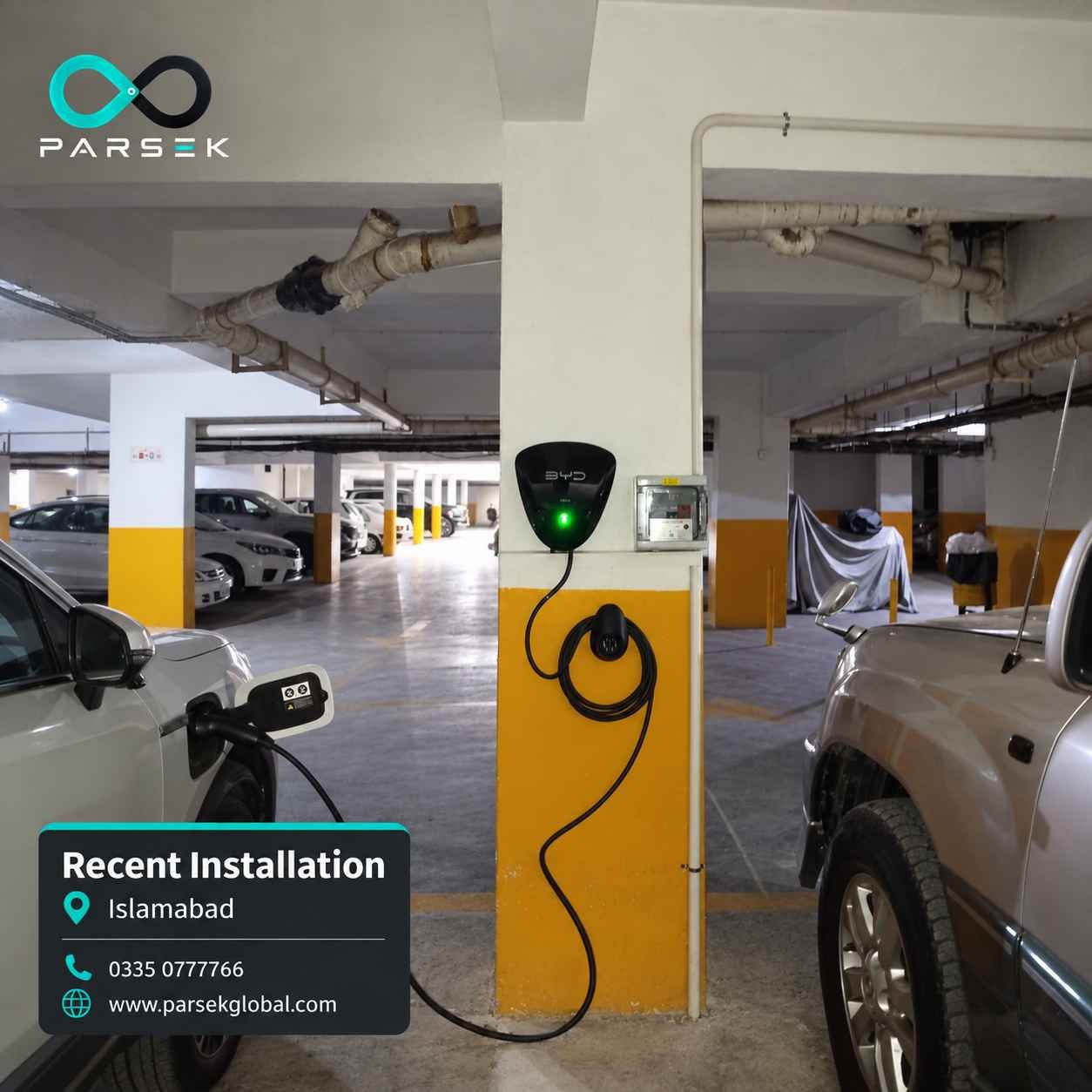

BYD EV charger installation by PARSEK

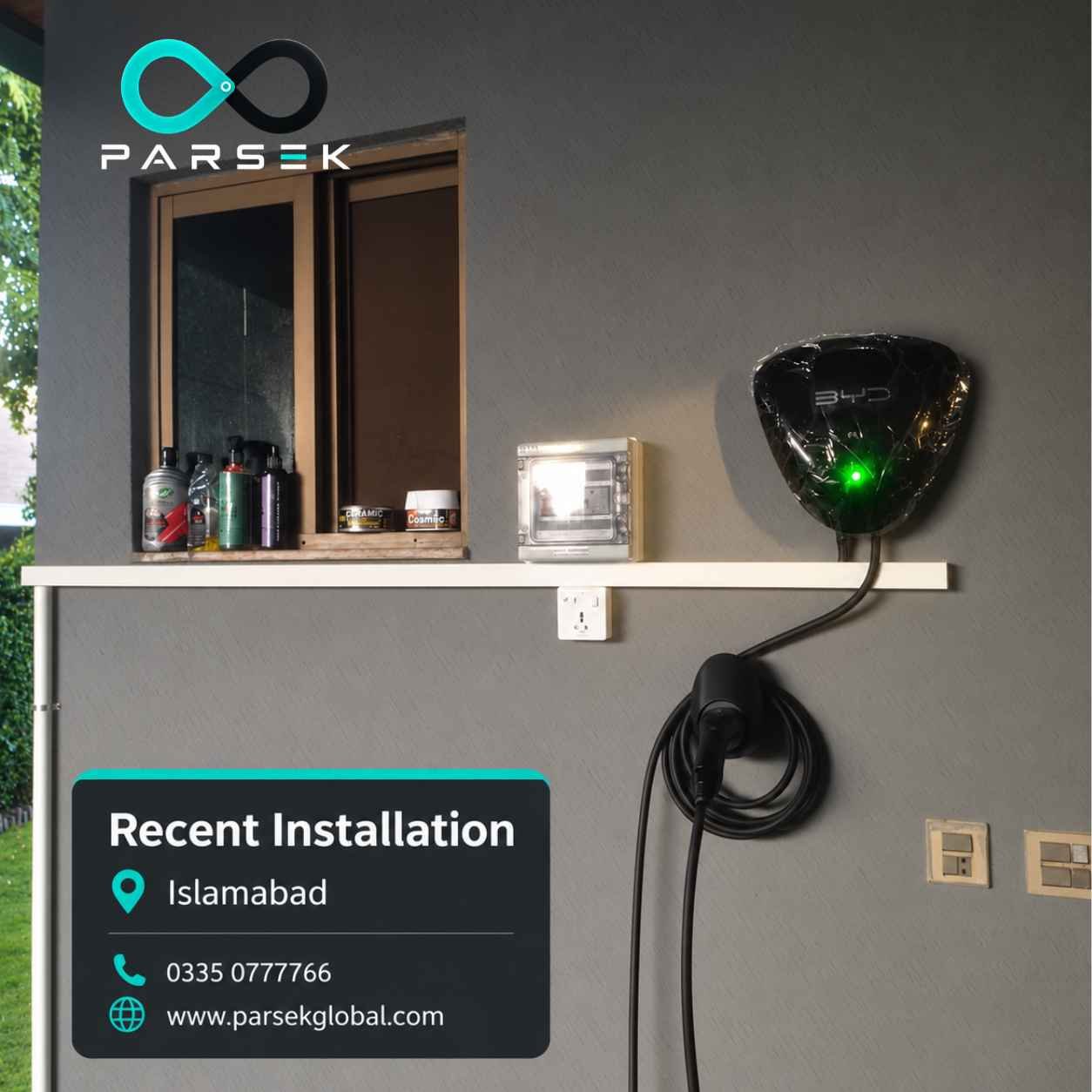

PARSEK EV charger installation in Islamabad

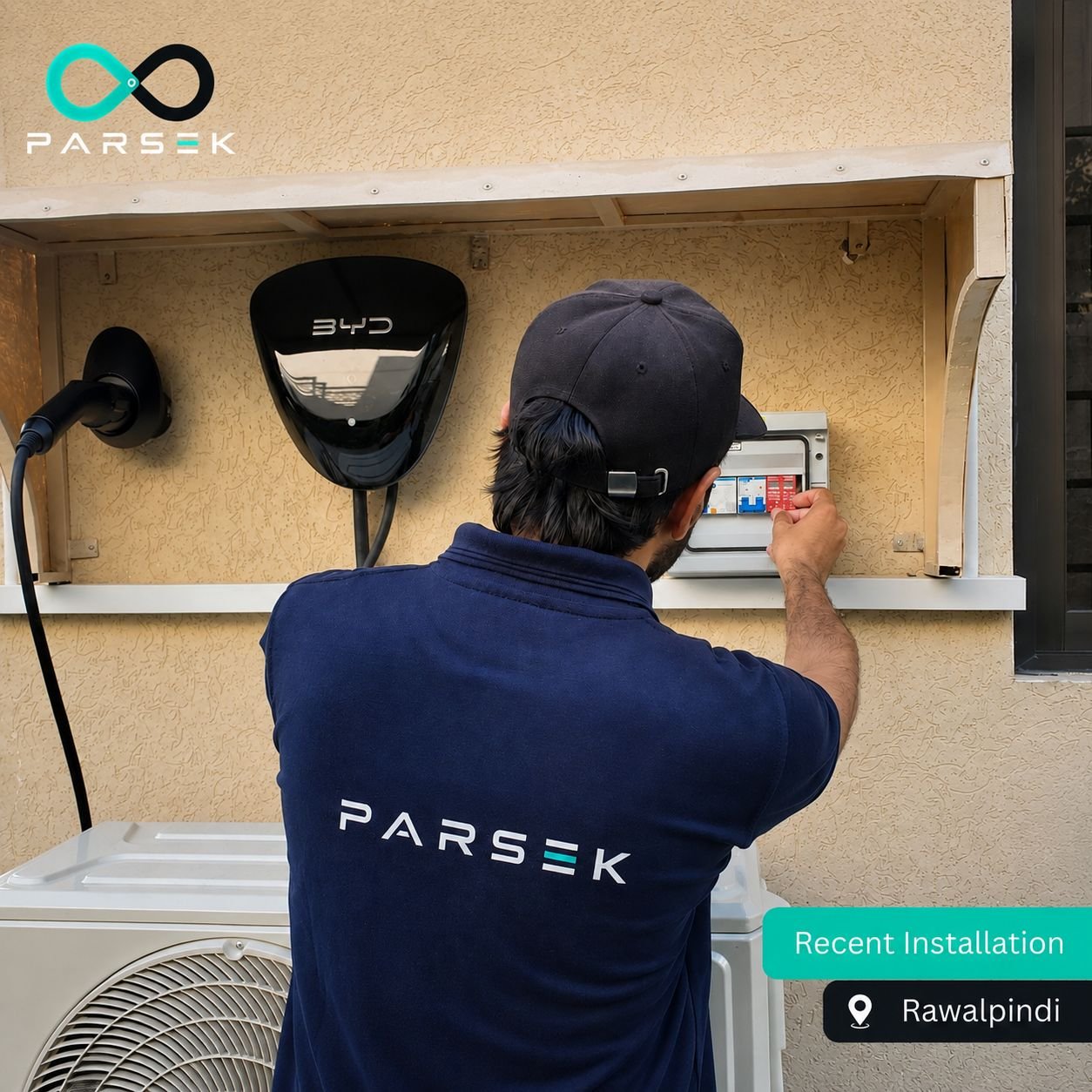

PARSEK EV charger installation in Rawalpindi

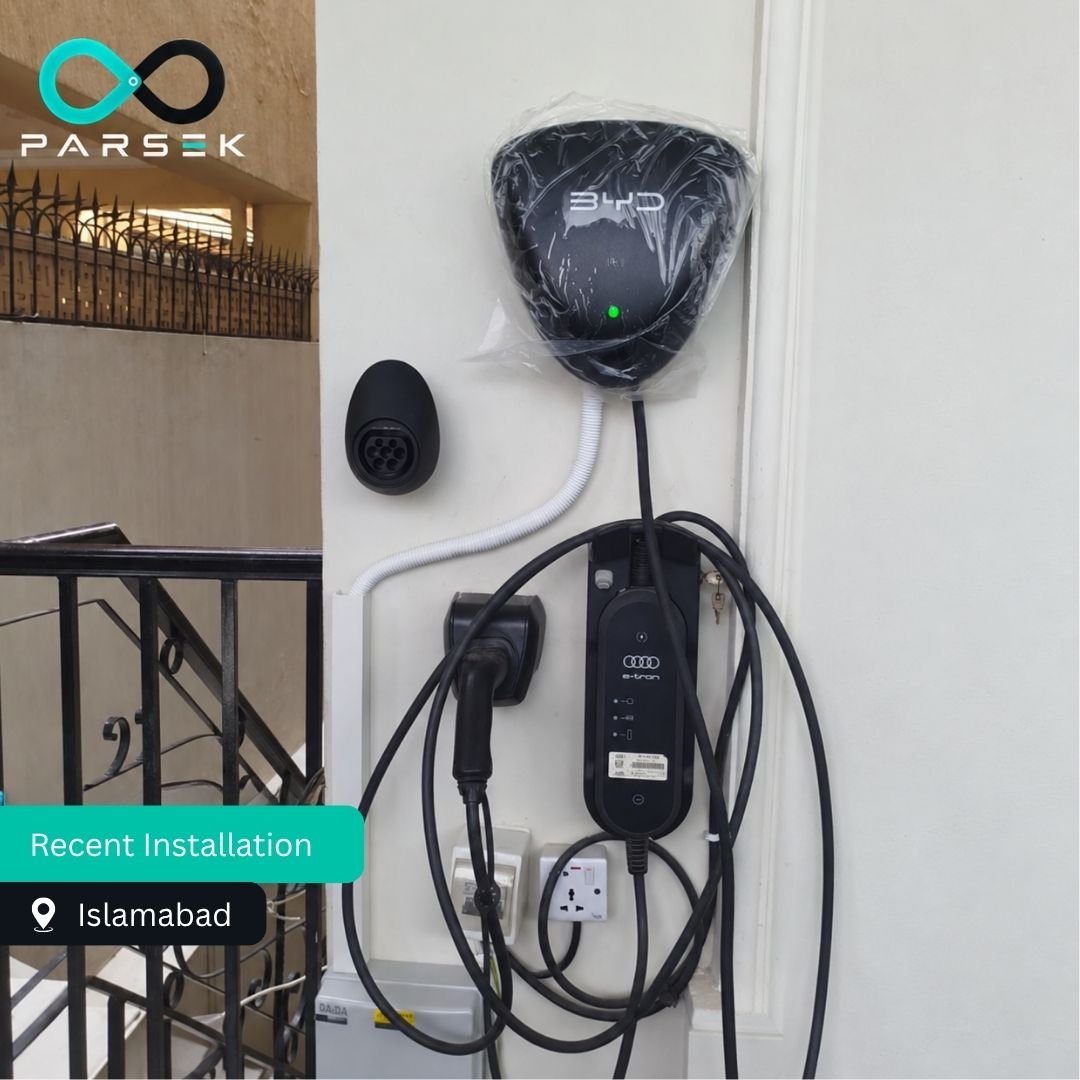

EV charging installation by PARSEK in Islamabad

A FEW THINGS, ANSWERED

Before you
plug in.

Which EV charger is right for me?

That depends on your vehicle’s charging capability, available electrical supply and how quickly you need to charge. Share your vehicle model and location so we can recommend a suitable option.

Can I buy a charger without installation?

Yes. We can quote for supply only. If you need installation, we provide a combined supply and installation proposal following a site assessment.

Is the site survey free?

Yes, site surveys are currently free. Contact the team to confirm availability for your location and arrange a suitable time.

What warranty and support do you provide?

PARSEK JUPITER-AC7 and JUPITER-DC120 each carry a two-year equipment warranty. Spare parts are held locally. The DC120 also supports remote diagnostics and OTA firmware updates. Warranty coverage and exclusions are set out in your written proposal.

How soon can my charger be installed?

For available stock, the indicative timeline is around four weeks. Your final schedule depends on the site survey, electrical work required and the agreed charger configuration.

Do you install residential chargers across Pakistan?

We supply residential chargers nationwide. Residential installation is mainly available in Islamabad, Rawalpindi and Lahore. Commercial projects are served across Pakistan.

YOUR NEXT JOURNEY STARTS HERE

Let’s make
the connection.

Tell us what you have in mind. We’ll help you take the next step towards EV charging.

051 2711031

Monday–Saturday · 9 am–6 pm

Office 4, 4th floor, Tawseen Plaza,
Civic Center, Bahria Town Phase 4, Islamabad.

Your enquiry is sent to info@parsekglobal.com. We will contact you using the number provided.
